Rack Mount Ohmmeters

---

The HebTech Rack Mount Limit-Sensing Ohmmeter - Model 5012-06XR is designed for production resistance testing in an industrial environment.  It is a high-resolution, digital ohmmeter that couples laboratory precision with the durability and reliability needed by industry.

The use of a four terminal Kelvin resistance measurement system eliminates the inaccuracies introduced by test lead resistance.   When a large number of similar components are to be tested, high and low resistance limits are set using front panel thumbwheels.  Indicator lamps light when a component's resistance is above, below or within test limits.  An output relay is triggered to permit the automate rejection of unacceptable components.  The Model 5012-06XR makes 100% production testing practical, simple and economical without giving up accuracy and resolution.  Built in RS232 serial port included for data logging.

Operating Ranges:

 Range               Resolution              Test Current

0.2 Ω                         10 uΩ                            100 mA

0 - 2 Ω                    100 uΩ                            100 mA

0 - 20 Ω                     1 mΩ                               10 mA

0 - 200 Ω                10 mΩ                                 1 mA

0 - 2K Ω                         1 Ω                             100 uA

0 - 20K Ω                    10 Ω                             100 uA

0 - 200K Ω                100Ω                               10 uA*

                   * Low  Current Option Figures

Test Voltage for Full Scale

200 millivolts up to 2KΩ

2 volts from 20KΩ to 200KΩ

Accuracy:

 ± 0.05%,  ±1 digit at 25 ° C

 ± 0.001% per  ° C, 0° C to 50° C

Display:

3 ½ digit 0.5" [13mm] LED

4 ½ digit readout on Optional RS-232

Power Requirements:

117VAC ±10%, 50-60Hz, 5 watts

220VAC optional

Available Options:

Temperature Compensation -  permits test of components as if they were being tested at laboratory standard temperatures.

Audible Alarm - to announce an 'in tolerance' test. This can speed up manual testing as the operator does not need to look at the meter reading to see if the component is 'in spec'.

Enclosure:

 19" x 14" x 3.5" (483mm x 356mm x 89mm )

Calibration:

Certificate of Calibration traceable to NIST with every unit.

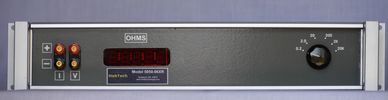

The HebTech Rack Mount Digital Resistance Tester - Model 5050-06XR is designed for high resolution, production resistance testing in an industrial environment.  As a high resolution digital ohmmeter, the Model 5050-06XR couples laboratory precision with the durability and low cost required by industrial resistance testing applications.

 By using a four wire, Kelvin based, resistance measurement system, the Model 5050-06XR eliminates the inaccuracies introduced by test lead and contact resistance.  With the RS-232 computer interface, it can readily be integrated with in-plant computers for automated testing and data acquisition.   It is also extremely economical when use for spot checks or short production runs.

Operating Ranges:

 Range               Resolution              Test Current

0.2 Ω                      10 uΩ                           100 mA

0 - 2 Ω                    100 uΩ                        100 mA

0 - 20 Ω                  1 mΩ                              10 mA

0 - 200 Ω               10 mΩ                              1 mA

0 - 2K Ω                  100 mΩ                       100 uA

0 - 20K Ω               1 Ω                                 100 uA

0 - 200K Ω             10Ω                                10 uA*

                 * Low  Current Option Figures

 Test Voltage for Full Scale

200 millivolts up to 2KΩ

2 volts from 20KΩ to 200KΩ

Accuracy:

 ±0.02%, ±1 digit at 25°C ±0.001% per °C

rated at 0° - 50°C

Display:

4 ½ digit 0.5" [13mm] LED

Power Requirements:

117VAC ± 10%, 50-60Hz, 5 watts

220VAC optional

Available Options:

Temperature Compensation -  permits test of components as if they were being tested at laboratory standard temperatures.

Audible Alarm - to announce an 'in tolerance' test. This can speed up manual testing as the operator does not need to look at the meter reading to see if the component is 'in spec'.

Enclosure:
19" x 14" x 3.5" (483mm x 356mm x 89mm)

Calibration:

Certificate of Calibration traceable to NIST with every unit.

The HebTech Rack-Mount Digital Milliohm Meter - Model 5060-06XR is designed for high resolution, production resistance testing of very low resistances in an industrial environment. As a high resolution, digital ohmmeter, the Model 5060-06XR couples laboratory precision with the durability and low cost required by industrial resistance testing applications.

By using a four wire, Kelvin based, resistance measurement system, the Model 5060-06XR eliminates the inaccuracies introduced by test lead and contact resistance. A Kelvin connection is absolutely required for reliable measurement of resistances in the milliohm ranges. With the built-in RS-232 computer interface, it can readily be integrated with in-plant computers for automated testing and data acquisition. It is also extremely economical when used for spot checks or short production runs.

The Model 5060-06XR makes 100% production testing practical, simple, and economical without giving up superior accuracy and high resolution. The ability to accurately measure resistances as low as 2 milli-ohms (.002Ω full-scale) with a resolution of 1 micro-ohm, this is a perfect choice for measuring connector and switch resistance, wiring harnesses, motor commutators and other challenging low resistance production items.

Operating Ranges:

 Range                    Resolution             Test Current

0 - 2 mΩ                      1  uΩ                        1000 mA

0 - 20 mΩ                   10 uΩ                       100 mA

0 - 200mΩ                 100 uΩ                     10 mA

0 - 2Ω                           .001Ω                       1 mA

0 - 20Ω                        .01 Ω                         100 uA

0 - 200Ω                      0.1Ω                         100 uA

1 more digit of resolution available via RS-232 Port readings.

Accuracy:

±0.05%, ±1 digit at 25°C

±0.001% per °C, 0°C to 50°C

Display:

3½ digit 0.5" [13mm] LED

Power Requirements:

117VAC ±10%, 50-60Hz, 5 watts

220VAC optional

Available Options:

Temperature Compensation -  permits test of components as if they were being tested at laboratory standard temperatures.

Audible Alarm - to announce an 'in tolerance' test. This can speed up manual testing as the operator does not need to look at the meter reading to see if the component is 'in spec'.

 Enclosure:

19" x 14" x 3.5" (483mm x 356mm x 89mm)

Calibration:

Certificate of Calibration traceable to NIST with every unit.
